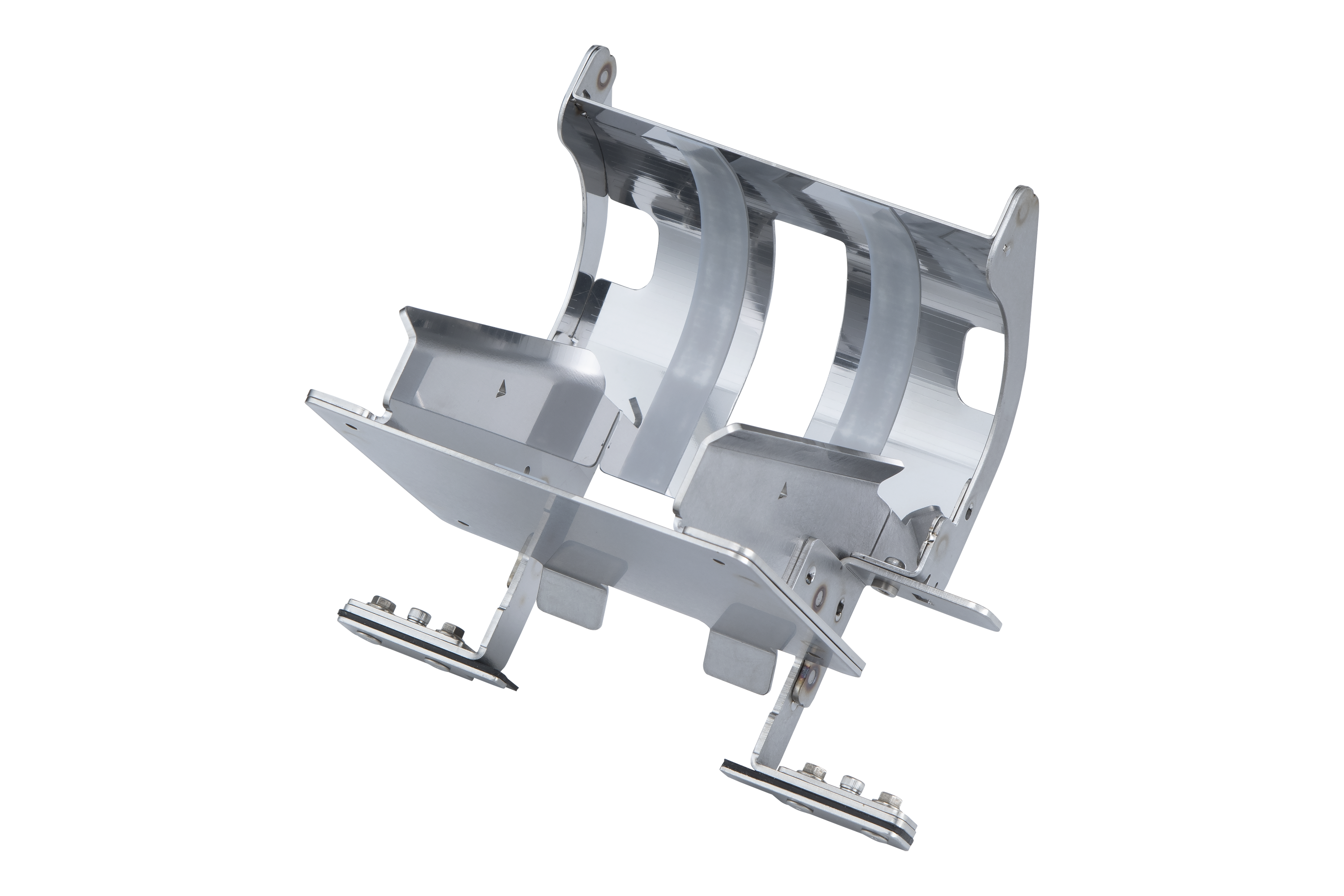

The Feeder for Easy Plate is intended for scanning a large number of Easy Plates using the document scanner ADS-4300N (Brother Industries Ltd.). Scanned Images can be analyzed with the Colony Counting System for Easy Plate.
* This product is patent pending.
Feature
- Easy Installation
One-touch attachment makes setup simple. Just insert it into the scanner's paper tray and you're ready to use. - High-Volume Scanning
Scan a large number of Easy Plates continuously in a single batch.
Introduction Video
Video Manual
Product Specification
| Product Name | Feeder for Easy Plate |
|---|---|
| Product code | 61810 |
| Contents |
|
| Supported Scanner | ADS-4300N (Brother Industries Ltd.) |
| Feeding position | Align at the center of the scanner |
| Supported medium | Easy Plate series (Kikkoman Biochemifa Company) |
| Load capacity | 60 plates |
| Feeding direction |
|
| Operating temperature | 15-35℃ |
| Operating humidity | 40-60% RH (non-condensing) |
| Material (Main body) |
SUS430 |
| Material (Separation pieces) |
EPDM |
| Material (Glide Tape) |
UHMWPE |
| Material (Card) |
PVC |
| Weight | Approximately 560 g |
Designated scanner
ADS-4300N by BROTHER INDUSTRIES, LTD.
- We do not sell the scanner.
- If you have any troubles with using Easy Plate, please contact us.
- The incidents occurred from scanning Easy Plate will not be covered by the warranty of each retailer.
- In case of malfunction, you are liable for the cost of repair provided by each retailer.
- There is no guarantee for operation of scanning Easy Plate when repaired with a fee.
